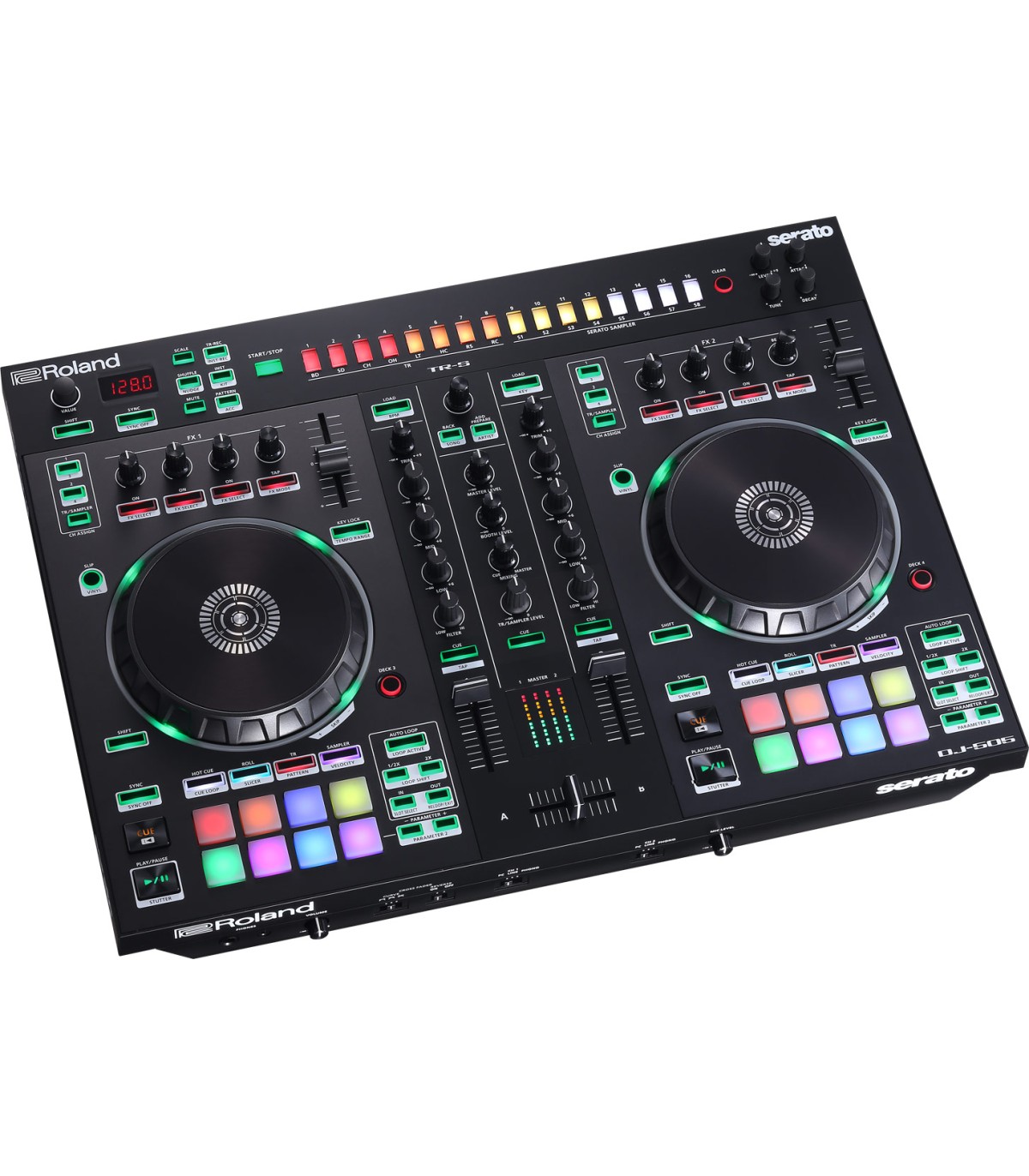

Roland DJ Controller DJ-505

Marca:
Love

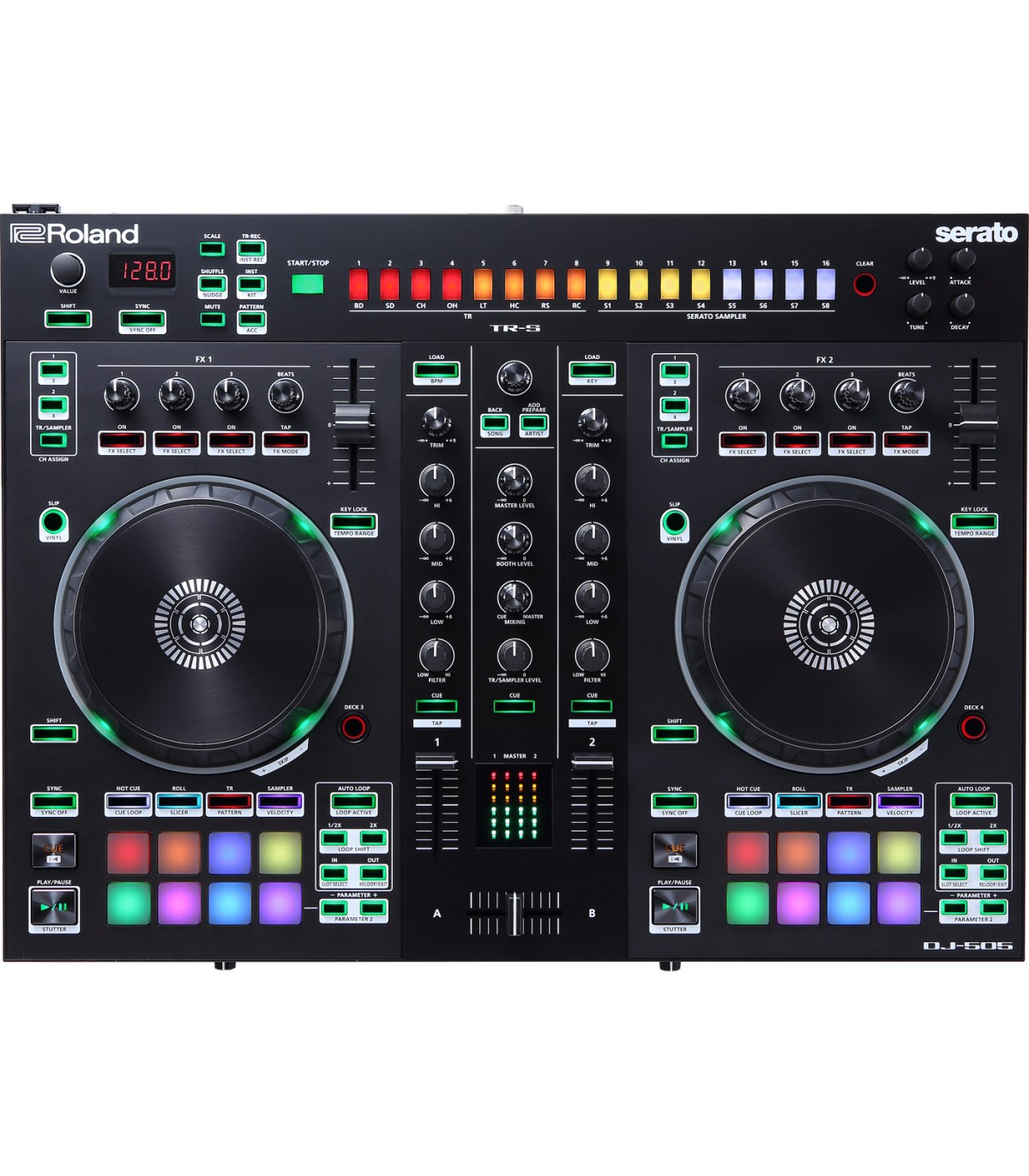

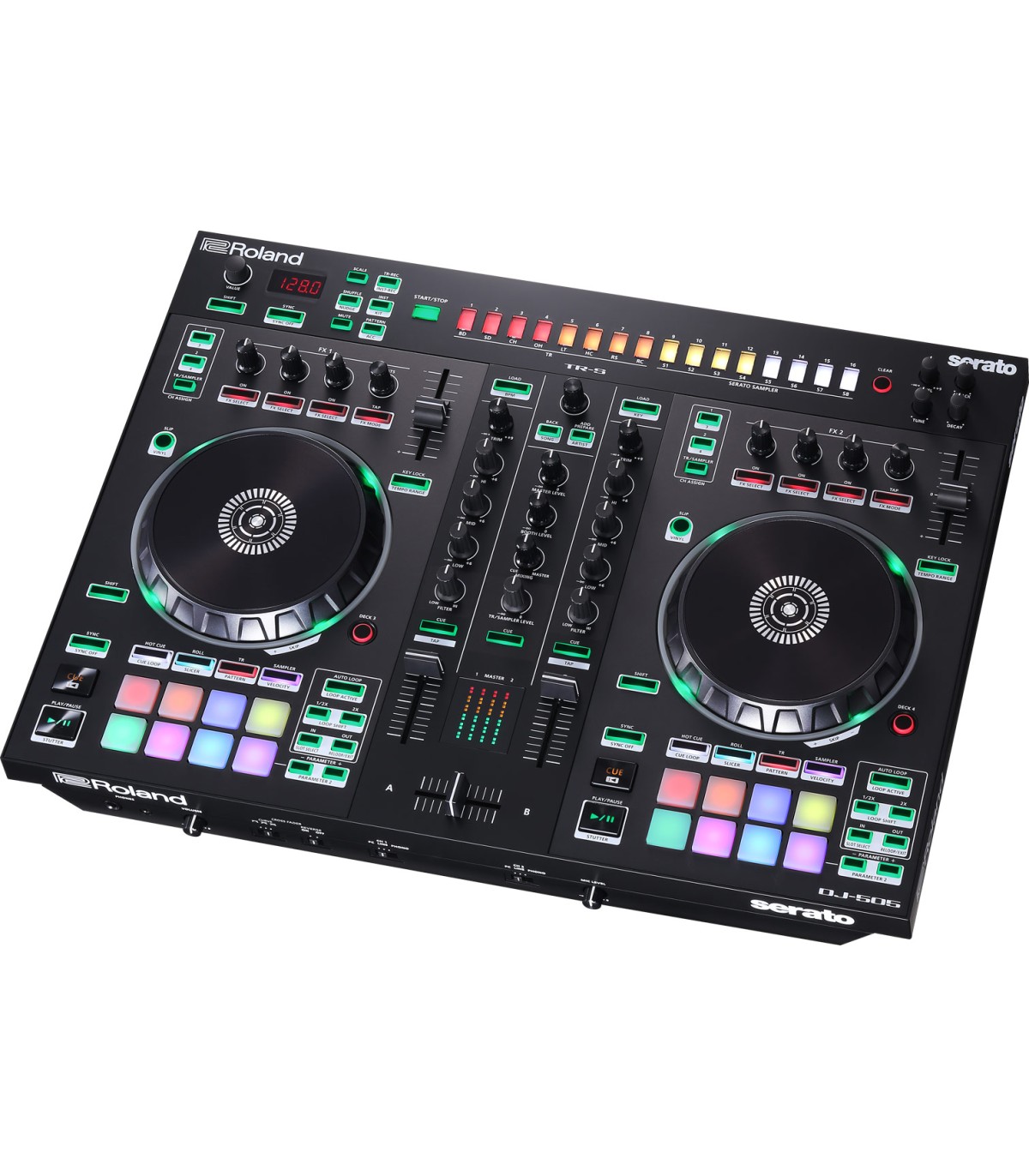

The Roland DJ-505 is a 2-channel, 4-deck Serato DJ controller. With legendary TR-808/909 sounds, it allows for unique transitions and live remixes, ideal for DJing, remixing, and production, exploring new approaches to musical performance with unparalleled flexibility.

Read moreShow less
Stock available in aproximatly 3-4 weeks.
Reference:
09008
€609.00
Description

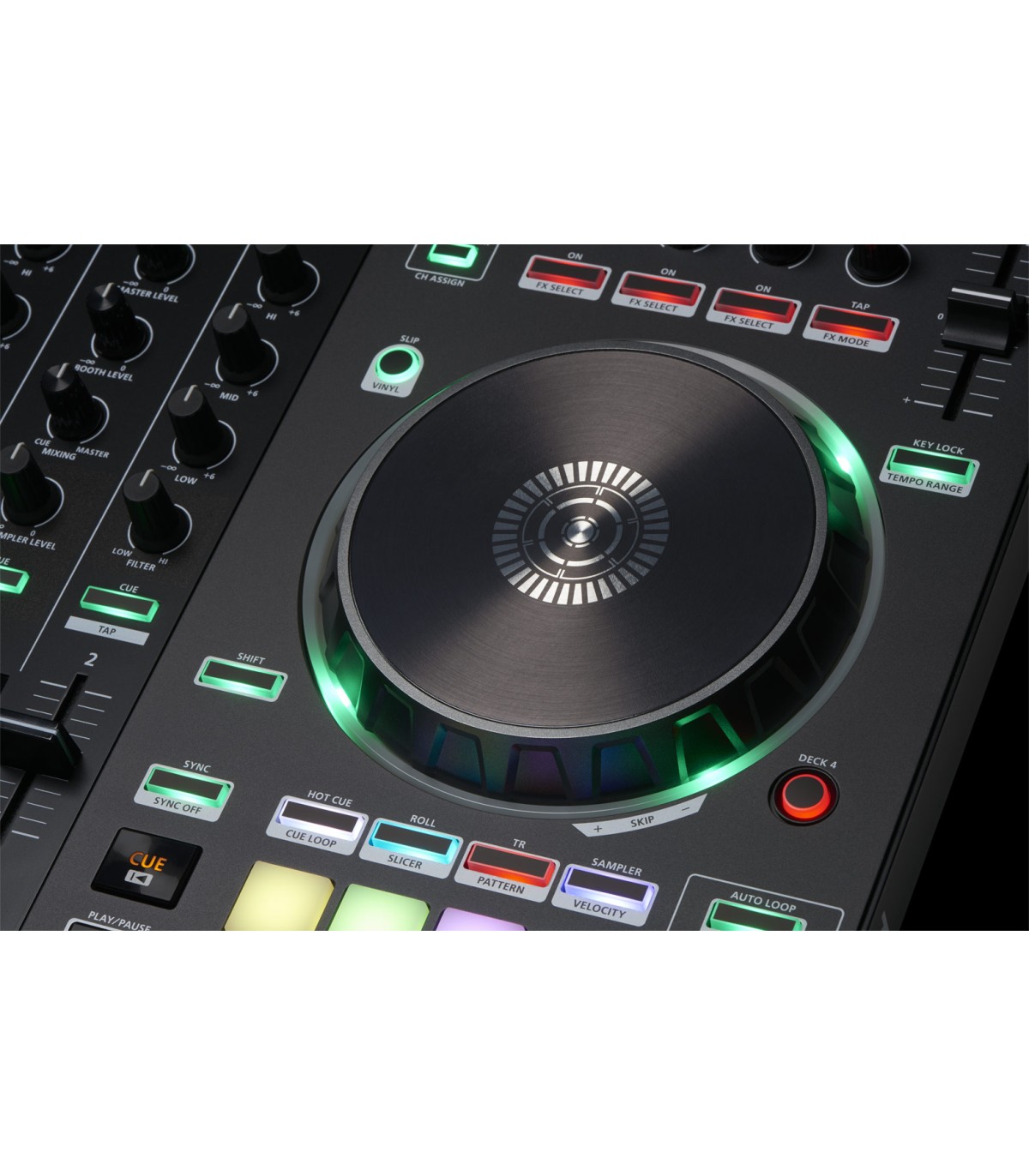

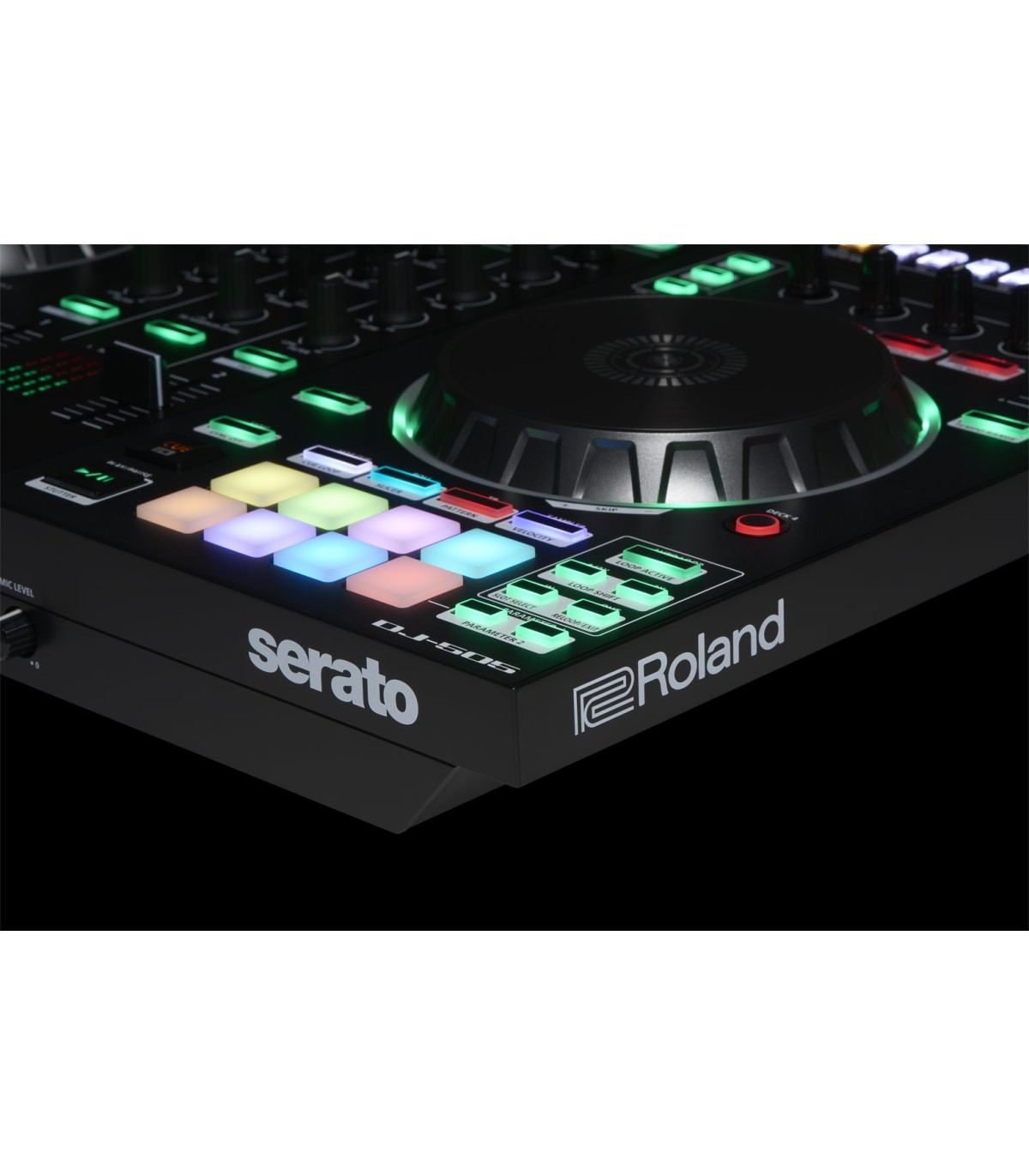

A powerful controller the Roland DJ-505 with two channels and deck selection for up to four decks. Large, low-latency platters optimized for scratching. It includes eight dedicated control pads for Serato DJ, offering Hot Cue, Roll, Slicer, TR, Pattern, and Sampler modes.

This controller features internal, editable drum kits from Roland's legendary TR-808, TR-909, TR-606*, and TR-707* with cutting-edge ACB (Analog Circuit Behavior) technology. Shape TR drum sounds and Serato samples on the fly with Level, Attack, Decay, and Tune knobs.

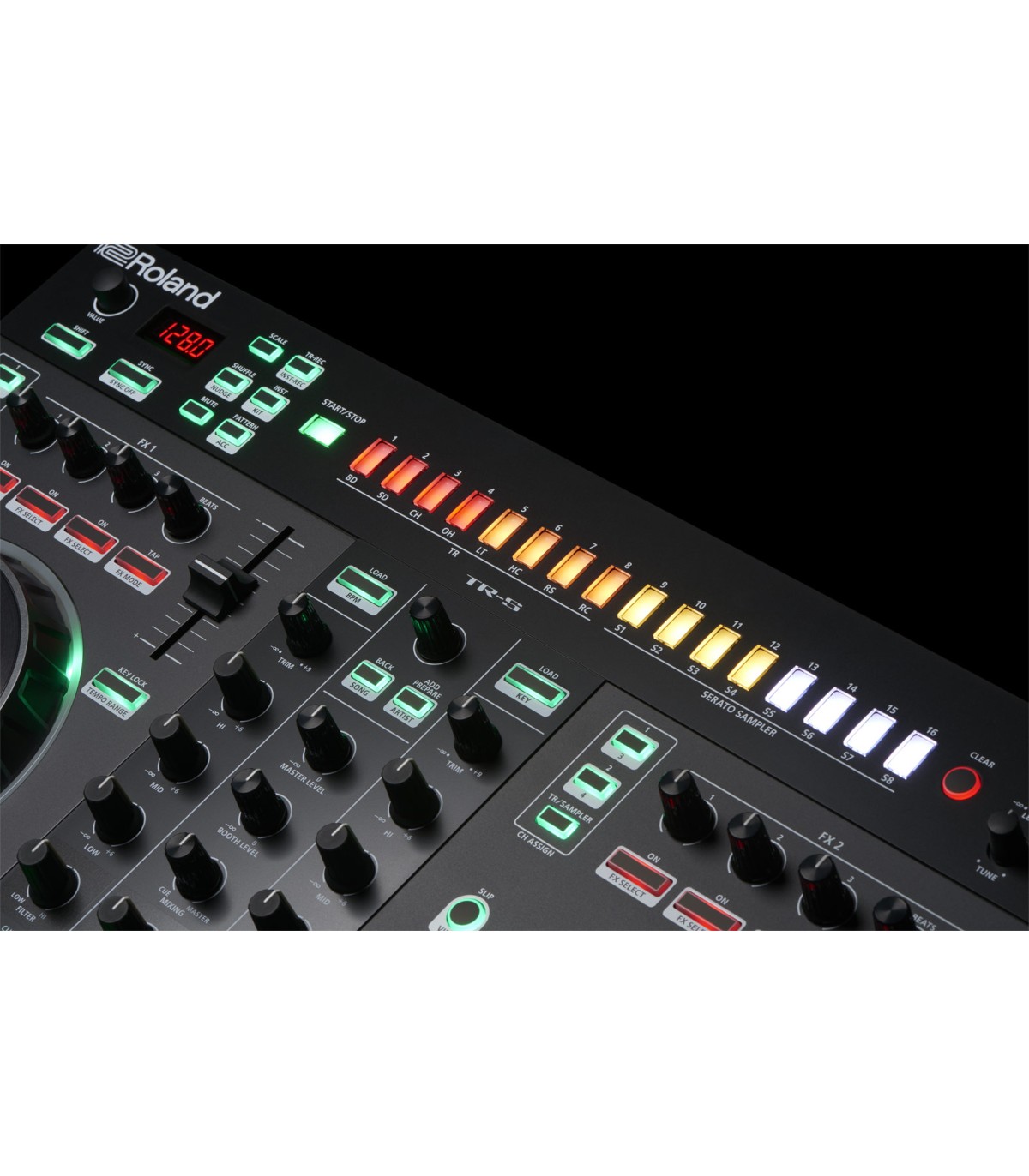

Additionally, it comes with a classic 16-step sequencer that can trigger TR drum sounds or Serato samples, with new functions including nudge (TR-S), step-roll, and instrument/sample mute. Unlock Serato DJ and includes the Serato Tool Kit license (includes Serato Pitch ‘n Time DJ, Serato Flip, and all Serato DJ FX packs).

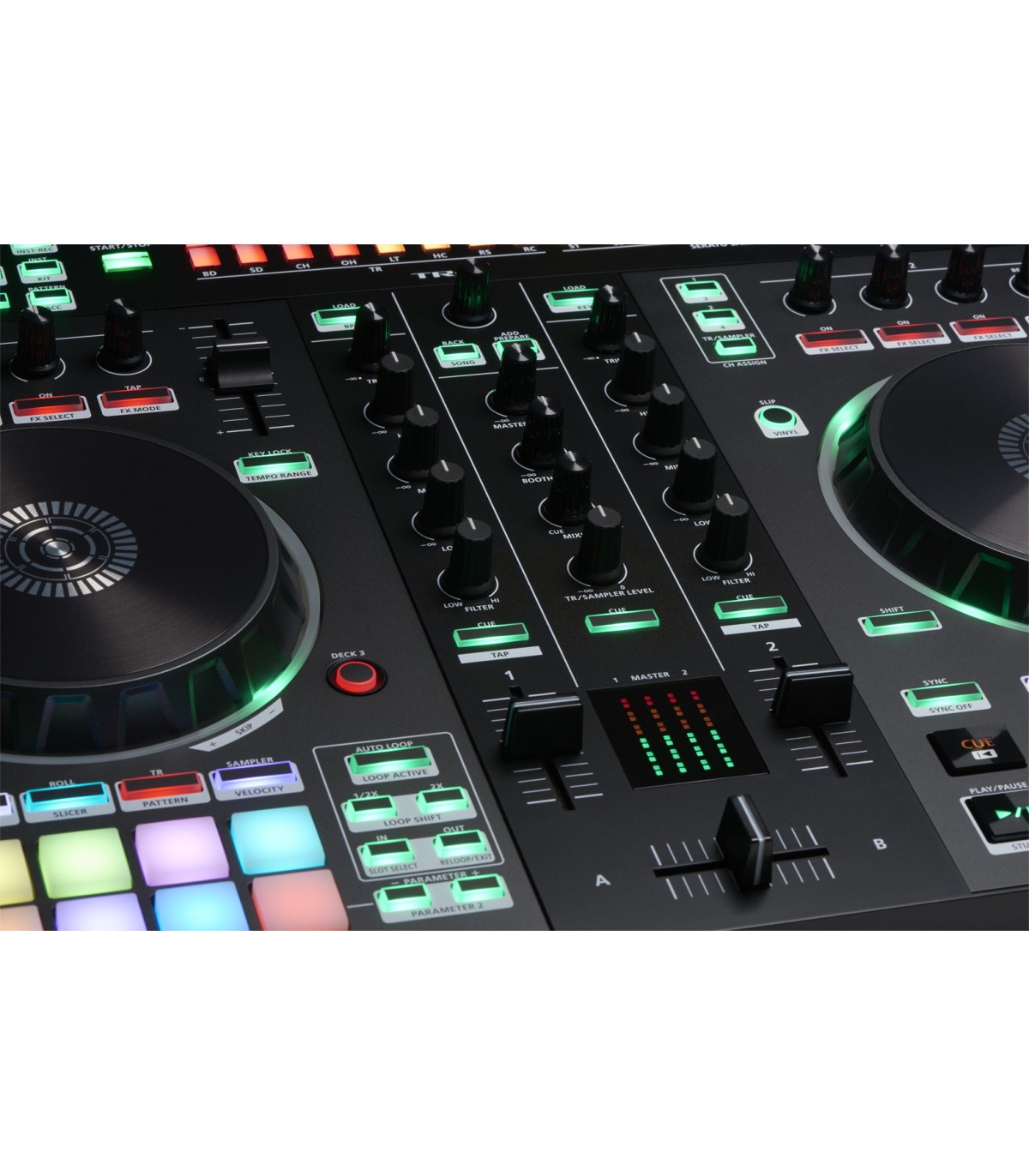

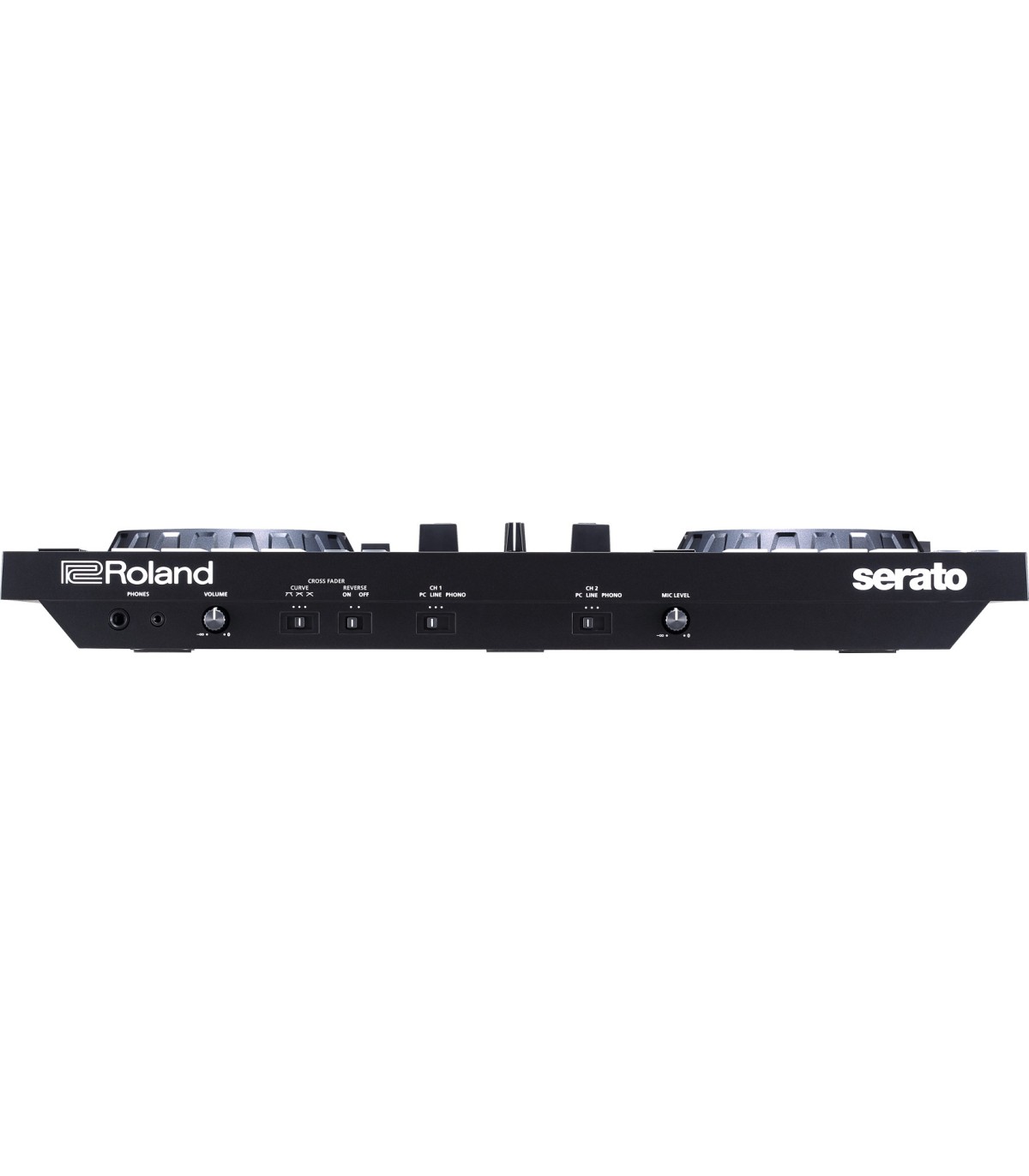

The mixer can be used standalone with connection to multiple players or vinyl turntables via line and phono inputs; Ready for Serato DVS upgrade. It features balanced XLR outputs for connection to professional PA systems; Booth output and separate 1/4-inch and 1/8-inch outputs for Phones allow mix monitoring. It also has a microphone input with gate, high-pass filter, reverb, and echo effects, and MIDI output for syncing with external equipment with Serato DJ and TR-S sequencer.

*The sounds from TR-606 and TR-707 requires a user firmware upgrade.

Read moreShow less
Product Details
09008

Data sheet

Signal processing
48 kHz
Nominal input level
INPUT (1, 2) (RCA phono type, PHONO): -39 dBu
INPUT (1–4) (RCA phono type, LINE): -12 dBu
MIC IN (1/4-inch phone type): -60 dBu
Nominal output level
BOOTH OUT: +6 dBu (balanced)
MASTER OUT 1: +6 dBu (balanced)
MASTER OUT 2: +0 dBu
Input impedance
INPUT (1–4) (RCA phono type): 47 k ohms or greater
MIC IN (Combo type): 7 k ohms or greater
Output impedance
BOOTH OUT: 600 ohms (balanced)
MASTER OUT 1: 600 ohms (balanced)
MASTER OUT 2: 1 k ohm (unbalanced)
PHONES: 44 ohms

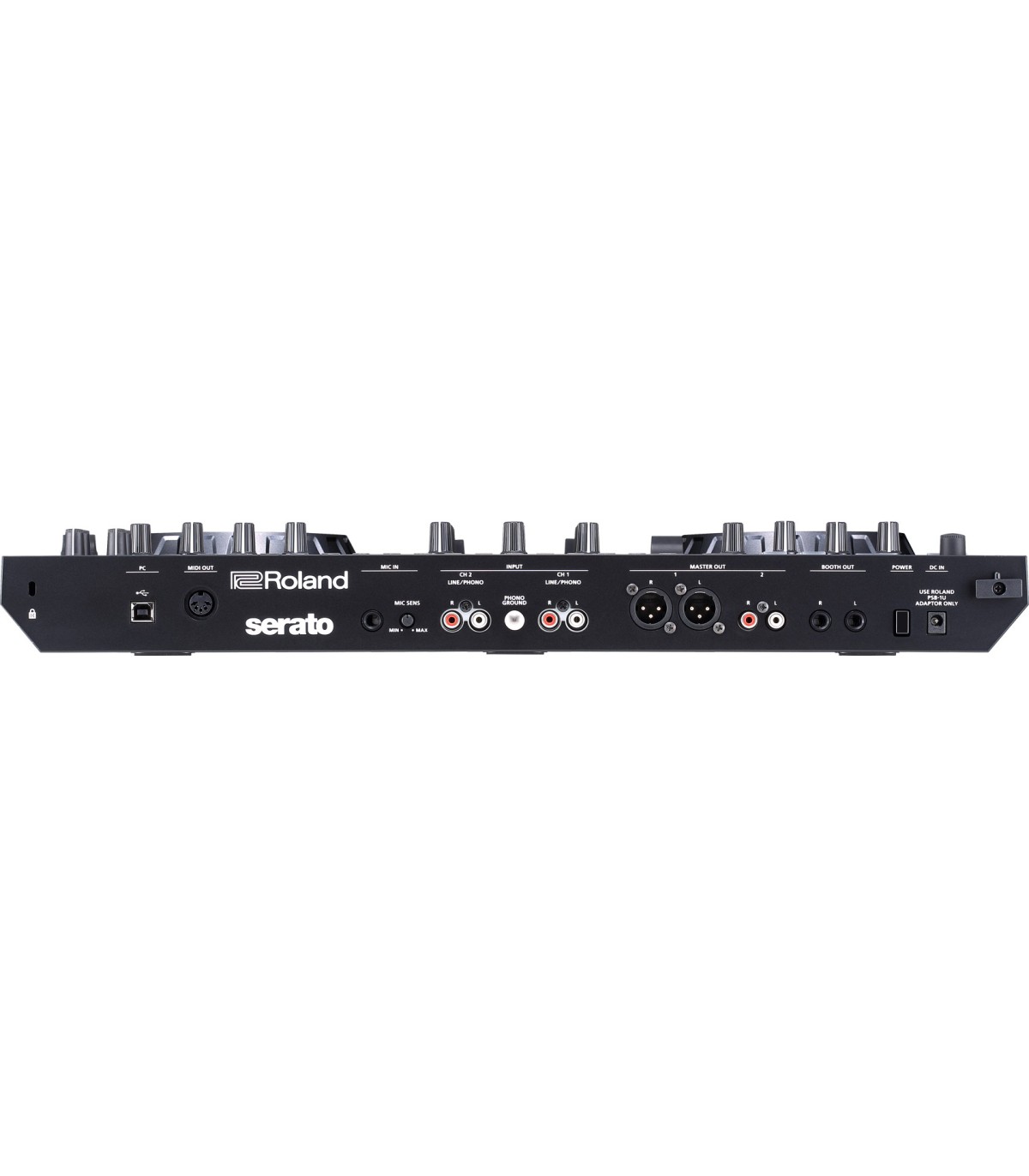

Connectors
BOOTH OUT jacks: TRS phone type (balanced)
DC IN jack
INPUT (1–2) jacks: RCA phono type
MASTER OUT 1 connectors: XLR type (balanced)
MASTER OUT 2 jacks: RCA phono type
MIC IN jack: 1/4-inch phone type
MIDI OUT connector
PC port: USB type B
PHONES jacks: stereo 1/4 inch phone type, miniature phone type
PHONO GROUND terminal
Power supply
AC adaptor
Current draw
2,000 mA
Height
73 mm (2-7/8")
Width
530 mm | 20-7/8 inches
Depth
402 mm (15-7/8")
Weight
3.5 kg ( 7 lbs 12 oz)
